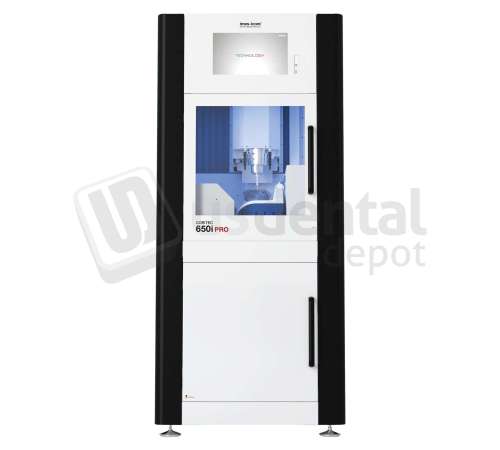

iMES iCORE - CORiTEC 650i PRO (380V) - # 511012-1650 Dental Milling units -
Description
CORiTEC 650i PRO (380V)
SKU: 511012-1650
5-axis dental milling machine precision power: 5,2 KW
Key features
- 5 axes simultaneous processing in high dynamic for highest
- Wet and dry processing
- solid machine base made out of polished natural granite
- high resolution absolute measurement system in all axis
- Linear mortors in X,Y and Z axis
- Torque motors in A and B axis
- machine housing with wide door for convenient handling/loading
- Ergonomic touch screen
- EtherCAT Realtime controller, software surface iNC
- high-quality standards of precision and speed
- powerful high-frequency spindle, liquid cooled:
- 32-fold tool changer
- Temparture Compensation
- Variety of possible holder systems
- EROWA Zero Point clamping system
- Integrated HD camera
- LED interior lighting
- Integrated coolant tank with filter system for wet-processing
- Measurements (Width x depth x height): 864x1124x1935mm; 34.02
- Weight ca. 650 kg/ 1433 lbs
- Voltage 380V / 3 Phases / 50/60 Hz
- Air pressure 6-9 bar permant, connector K28
- Spindle chiller required
Specifications
| SKU | 511012-1650 |
| Category | Milling Machine |
| Series | Spindle Chiller |
| Processing | Wet & Dry |
| Voltage / Frequency | 380V / 3 Phases / 50/60 Hz |
| Weight | 650 kg |
