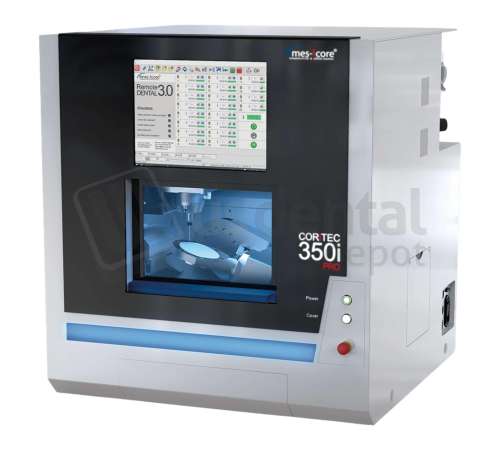

iMES iCORE - CORiTEC 350i PRO ION - # 511013-2350 Dental Milling units -
16047_f.jpg)
Description
CORiTEC 350i PRO ION
SKU: 511013-2350
5 axis milling machine dry-processing variations in environmental temperature
Key features
- 5 axes processing (3+2 and simultaneous)
- high dynamic AC-Servomotors with absolute encoder
- mono block base from polymer concrete
- integrated zero-point-clamping-system
- including 1 blank holder
- dry processing
- 15” touchscreen and PC integrated
- integrated cooling liquid tank and circle
- automatic tool changing system for 20 tools
- suitable for processing of Zirconiumoxide, Wax, PMMA, resins
- milling-angles up to 30 degrees with the standard blank-holder
- rotation-axis 360 degrees, pivot-axis up to 115 degrees
- high shine chassis with LED illumination
- high-performance HF spindle up to 60.000 rpm
- automatic tool-changing-system with 20 tool positions
- dustcover for tool-changer
- collet 6mm shaft
- integrated precise tool measurement sensor
- temperature-compensation for consistent high precision also at
- integrated suction hose incl. adapter
- including ionisator and milling chamber outlet
- including CNC-control software CORiTEC Remote DENTAL 3.0
- Weight approx. 205 kg
- Machine dimensions: 758 x 790 x 857 mm (WxDxH)
Specifications
| SKU | 511013-2350 |
| Category | Milling Machine |
| Series | CORiTEC |
| Processing | Dry |
| Dimensions (W×D×H) | 758×790×857 mm |
| Weight | 205 kg |
