iMES iCORE - CORiTEC 350i PRO - # 511013-0350 Dental Milling units -
16046_f.jpg)
Description

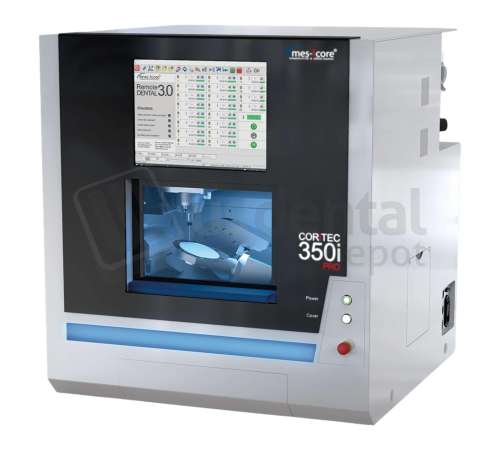

CORiTEC 350i PRO
SKU: 511013-0350
5 axis milling machine including wet-processing polymer concrete
Key features
- 5 axes processing (3+2 and simultaneous)
- high dynamic AC-Servomotors with absolute encoder
- massive axis construction made of polymer concrete
- integrated zero-point-clamping-system
- basic equipment with 1 blank holder
- dry processing and wet processing integrated
- integrated cooling liquid tank and circle
- suitable for processing of Zirconiumoxide, Aluminiumoxide,
- milling-angles up to 30 degrees with the standard blank-holder
- rotation-axis 360 degrees, pivot-axis up to 115 degrees
- high shine chassis with LED illumination
- integrated touchscreen and PC
- high-performance high-frequency-spindle up to 60.000 rpm
- automatic tool-changing-system with 20 tool positions
- dustcover for tool-changer
- collet 6mm shaft
- integrated precise tool measurement sensor
- temperature-compensation for consistent high precision
- integrated suction hose incl. adapter
- including CNC-control software CORiTEC Remote DENTAL 3.0
- Weight approx. 205 kg
- Machine dimensions: 758 x 790 x 857 mm (WxDxH)
Specifications
| SKU | 511013-0350 |
| Category | Milling Machine |
| Series | CORiTEC |
| Processing | Dry |
| Material | Aluminium |
| Dimensions (W×D×H) | 758×790×857 mm |
| Weight | 205 kg |
