IBO - Implant Fixture 3.5D x 8mm INTHEX NP (3.5mm) - Roughed & Etched surface - # SGI3508
10136_f.jpg)
Description

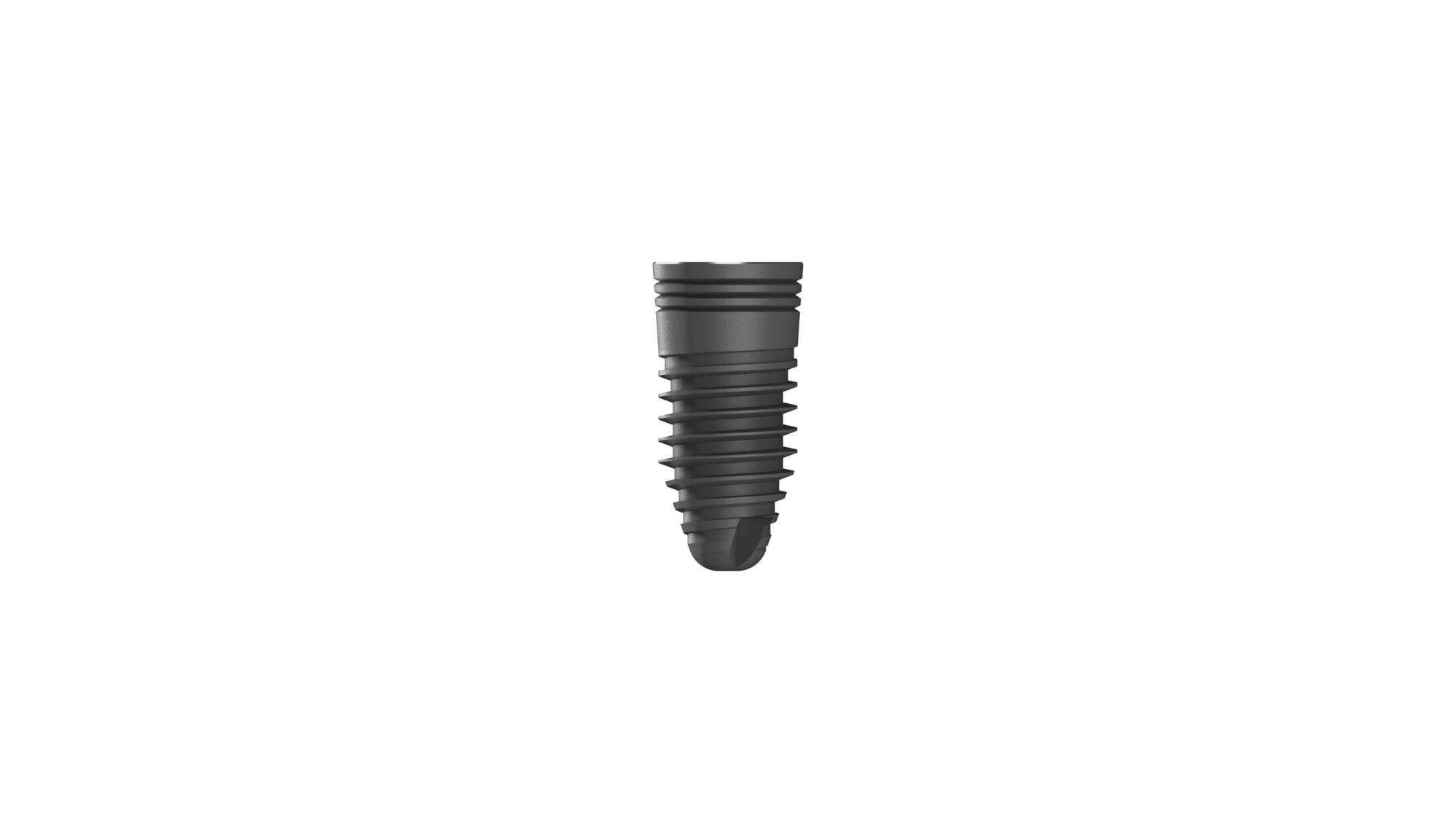

Internal Hex Implant Fixture — Ø3.5 mm × 8mm
DESCRIPTION
ODONTIT manufactures the INTHEX (Internal Hex) Implant Fixture line for restorative cases that follow the Zimmer® internal-hex prosthetic protocol. The Ø3.5 mm Fixture is engineered with a self-tapping apical thread profile and finished with a roughened and Etched surface intended to support osseointegration. Each Fixture is machined from medical-grade titanium and supplied in the manufacturer's validated condition for clinical use.
This reference, SGI3508, delivers a Ø3.5 mm body × 8mm length, with the IBO Internal Hex prosthetic connection in the NP platform.
CLINICAL APPLICATION
The Ø3.5 mm INTHEX Fixture at the NP class is intended for restorative scenarios requiring a narrow prosthetic emergence on the Internal Hex protocol — including lateral incisor sites, lower incisor regions and reduced-ridge scenarios.
Final clinical indication, surgical protocol and prosthetic loading regime must be determined by the treating practitioner based on case-specific bone quality, anatomy and prosthetic plan.
PLATFORM & COMPATIBILITY
The Internal Hex NP connection (Ø3.5 mm) is positioned as informational compatibility with the Zimmer Dental® Internal Hex Ø3.5 system. IBO supplies independent compatible prosthetic components; final clinical use must be verified against the Implant manufacturer's documentation.
| System reference | Platform | IBO INTHEX equivalent |
|---|---|---|
| Zimmer Dental® Internal Hex (informational) | Ø3.5 | INTHEX NP (Ø3.5 class) |
| IBO Abutment line | NP | IBO Internal Hex prosthetic series for the NP platform |
Zimmer® and Zimmer Dental® are trademarks of their respective owners. Ibodontit S.L. is an independent manufacturer with no affiliation, sponsorship or endorsement from the listed brands.
TECHNICAL SPECIFICATIONS
| Manufacturer reference | SGI3508 |
|---|---|
| Brand | ODONTIT |
| Product family | Internal Hex Implant Fixture (INTHEX) |
| Diameter | Ø3.5 mm |
| Length | 8mm |
| Platform | NP (Narrow Platform) |
| Connection type | Internal Hex |
| Thread design | Self-tapping |
| surface treatment | Roughened and Etched |
| Body material | Ti-6Al-4V ELI Grade 5 (ASTM F136 / ISO 5832-3) |
| Compatibility (informational) | Zimmer Dental® Internal Hex Ø3.5 |
| Package | 1pk |
| Regulatory | CE marking MDR · ISO 13485:2016 · AEMPS licence |
MATERIALS & surface
IBO exclusively selects Ti-6Al-4V ELI titanium, Grade 5, for medical use, in compliance with ASTM F136 and ISO 5832-3. This alloy is selected for its biocompatibility, mechanical strength and chemical stability in the oral environment.
Raw materials are stored in controlled environments to maintain composition and characteristics throughout the manufacturing chain. The Fixture body is finished with a roughened and Etched surface treatment designed to support bone-to-Implant contact.
All materials and processes comply with current regulations and are subject to full traceability from raw material to final validation.
STERILIZATION & HANDLING
IBO fixtures are supplied in the manufacturer's validated condition for clinical use. Follow the package insert and IBO Instructions for Use for handling, storage and any chairside preparation steps. Do not modify the Fixture geometry, surface treatment or connection seat in any way; doing so compromises both the prosthetic interface and the regulatory clearance.
Single-use device. Single patient, single procedure. Discard unused fixtures per local biohazard regulations.
QUALITY ASSURANCE
IBO operates under ISO 13485:2016 quality management for the manufacturing of medical devices, holds the AEMPS Spanish Agency of Medicines and Medical Devices licence, and every IBO Fixture carries the CE marking MDR, assessed by a Notified Body.
Five quality foundations apply to this Fixture:
