IBO - 17d Angled Multiunit® Abutment height 4mm Pink Anodised - INTHEX NP (3.5mm) NP. Titanium - # HEI-35854
Description

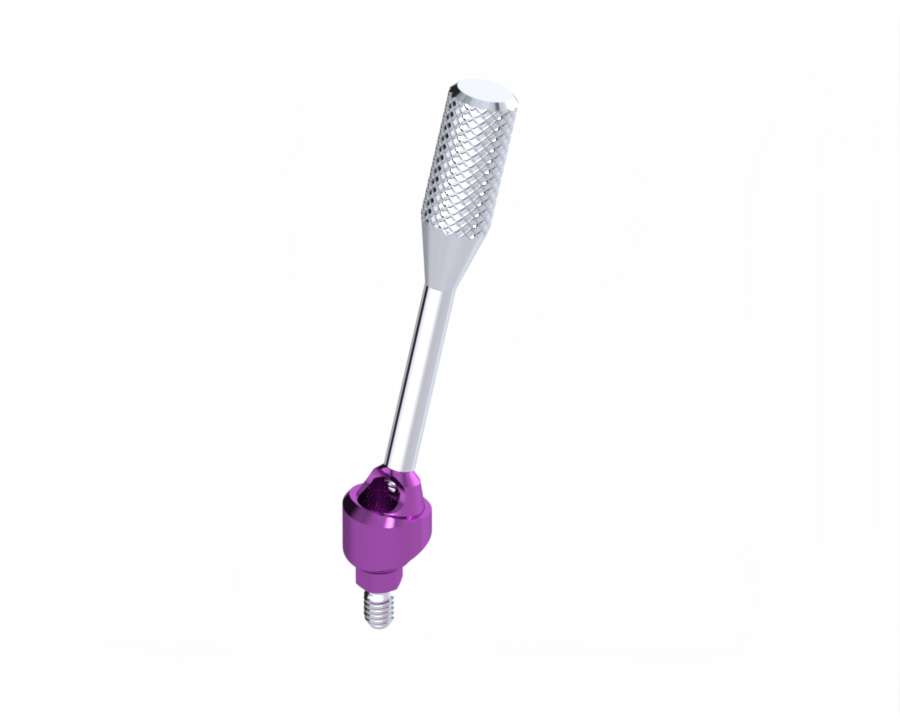

17° Multiunit Abutment — Internal Hex (INTHEX) NP (17d Angled Multiunit HEI-35854)
DESCRIPTION
IBO manufactures the 17-degree Angled Multiunit Abutment for prosthetically-driven multi-implant rehabilitations on the IBO Internal Hex line (Zimmer®-compatible protocol). This component mounts on the NP (Narrow Platform) implant connection and provides a standardized multiunit prosthetic platform for screw-retained bars, bridges and overdentures.
This reference, HEI-35854, is the 17° variant in the multiunit line and is selected when the prosthetic plan requires a 17° axis correction at the prosthetic interface.
CLINICAL APPLICATION
The 17° Multiunit Abutment is selected when implants placed with non-axial angulation require prosthetic-axis correction to achieve a passive, parallel multiunit framework. It is a core component in full-arch rehabilitations such as All-on-4®-style protocols, where posterior implants are tilted to maximize bone engagement and the prosthetic axis must be corrected at the Abutment level.
Final selection of angle, height and platform is determined by the treating prosthodontist based on the implant axes, the prosthetic plan and the impression workflow.
PLATFORM & COMPATIBILITY
The 17° Multiunit Abutment on the NP platform is positioned as informational compatibility with the Zimmer Dental® Internal Hex Ø3.5 protocol. IBO supplies independent compatible prosthetic components; final clinical use must be verified against the implant manufacturer's documentation.
| Component layer | Reference |
|---|---|
| Host implant body (IBO) | SGI35xx (Ø3.5 mm INTHEX fixtures) |
| This Multiunit Abutment | HEI-35854 (17°) |
| Compatible system (informational) | Zimmer Dental® Internal Hex Ø3.5 |
| Workflow components | Multiunit impression copings, multiunit analogues, multiunit temporary cylinders, framework screws |
Brand names are trademarks of their respective owners. Ibodontit S.L. is an independent manufacturer with no affiliation, sponsorship or endorsement from the listed brands.
TECHNICAL SPECIFICATIONS
| Manufacturer reference | HEI-35854 |
|---|---|
| Brand | IBO |
| Product family | 17° Multiunit Abutment |
| Angle correction | 17° |
| Connection system | Internal Hex (INTHEX) |
| Platform | NP (Narrow Platform) |
| Function | Multiunit prosthetic interface |
| Indication | Screw-retained multi-implant prosthetics |
| Material | Ti-6Al-4V ELI Grade 5 (ASTM F136 / ISO 5832-3) |
| Host implant series (IBO) | SGI35xx (Ø3.5 mm INTHEX fixtures) |
| Compatibility (informational) | Zimmer Dental® Internal Hex Ø3.5 |
| Package | 1pk |
| Regulatory | CE marking MDR · ISO 13485:2016 · AEMPS licence |
MATERIALS & SURFACE
IBO Multiunit components are machined from medical-grade Ti-6Al-4V ELI Titanium, Grade 5, in compliance with ASTM F136 and ISO 5832-3. This alloy is selected for its biocompatibility, mechanical strength and chemical stability in the oral environment.
The component features a polished/machined surface at the gingival emergence for soft-tissue compatibility, and tightly toleranced connection geometry at the implant interface to ensure prosthetic passivity and seal integrity.
All materials and processes are subject to full traceability from raw material to final validation.
STERILIZATION & HANDLING
IBO Multiunit components are supplied in the manufacturer's validated condition for clinical use. Follow the package insert and IBO Instructions for Use for handling, storage and torque protocol. Do not modify the component geometry, surface or connection seat in any way; doing so compromises the prosthetic interface and the regulatory clearance.
Single-use device. Single patient, single procedure. Discard unused components per local biohazard regulations.
QUALITY ASSURANCE
IBO operates under ISO 13485:2016 quality management for the manufacturing of medical devices, holds the AEMPS Spanish Agency of Medicines and Medical Devices licence, and every IBO component carries the CE marking MDR, assessed by a Notified Body.
Five quality foundations apply to this component:
